Strong hollow rails, stiles and mid rails give this hinged door the edge in strength and serviceability. The hollow sill also feature an efficient self draining system for standard aluminium or timber door sashes.
Unique “Z†seals and Q’lon seals used for the head, sill and stiles provide excellent sealing from the weather and guarantee air tightness, noise and energy efficiency. Doors can be opened inwards as well as outwards.
The open in door features a sloped sill for better wheelchair access and water run-off and its double rebate jambs are suited for security doors.
Additional options for both hinged doors include insect or security screens.

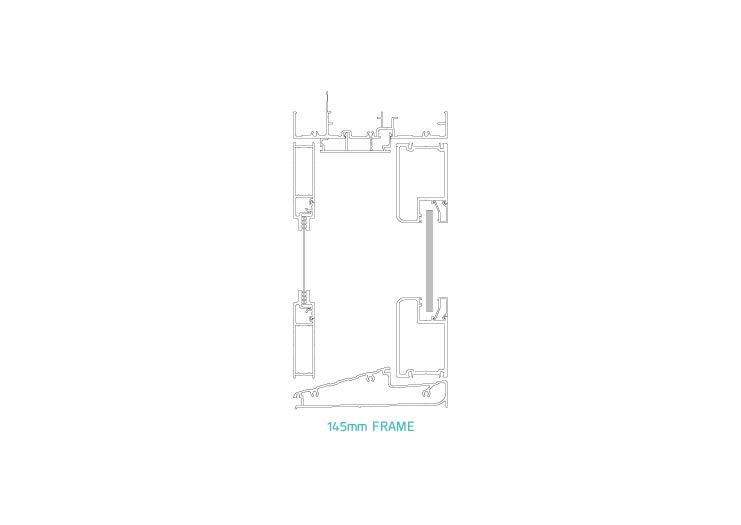

Frame widths available: 145mm.
Structural performance (up to):
Serviceability Limit State Wind Pressure: 1800Pa max
Ultimate Limit State Wind Pressure: 4300Pa max
Water Penetration Resistance Pressure: 150Pa max
Maximum recommended size (up to):
Height: 2700mm
Width: 1000mm (sash width)
Glazing Maximum Thickness (up to):
Single Glazed: 12.76mm
Double Glazed: 16mm
Acoustics (up to):
Hinged Door: RW (C:Ctr): up to 33 (-1:-2)
