The Bedarra 100mm Bifold Door features large panels, this ensures more uninterrupted views without sacrificing strength and safety.
Quality marine grade stainless steel hardware is used to ensure product longevity and performance in the harshest of conditions.

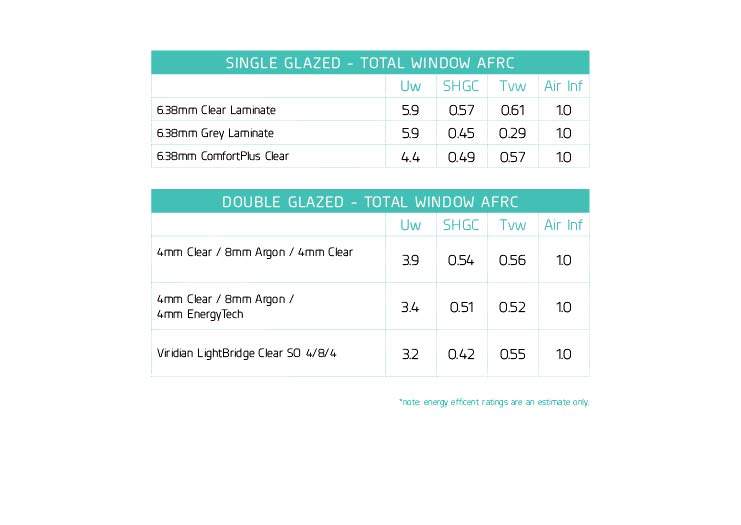

Utilising quality seals, the Bedarra will meet the highest demands for energy efficiency and weather performance in today’s market.
The sill is reversible allowing for inward and/or outward opening.
multi-point locking hardware for better security, and a dust seal on head tracks reducing wear and corrosion. It is also available in a low profile sill for easy access applications.

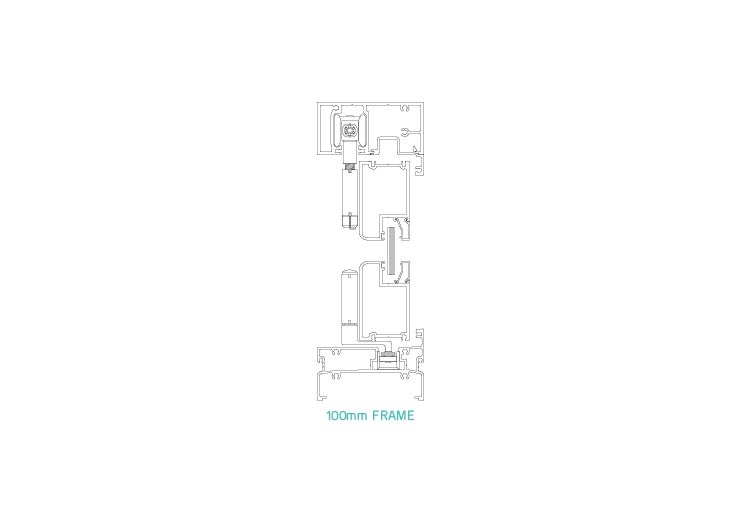

Frame widths available: 100mm.
Structural performance (up to):
Serviceability Limit State Wind Pressure: 1500Pa max
Ultimate Limit State Wind Pressure: 4000Pa max
Water Penetration Resistance Pressure: 330Pa max
Maximum recommended size (up to):
Height: 3000mm
Width: 1000mm (sash width)
Weight: 60kg
Glazing Maximum Thickness (up to):
Single Glazed: 10.76mm
Double Glazed: 22mm
Acoustics (up to):
Bi-fold Door: RW (C:Ctr): up to 33 (-1:-2)
