There are two sash types available for this system: Standard and Federation Wide Stile.
The Standard sash incorporates hollow rails for added strength and are flush to the jambs offering clear sight lines.
They also feature built-in extruded handles to both the top and bottom sashes.
Versatile security and insect screens can be installed and removed from inside the building.
The Federation Wide Stile sash replicates the look of timber double hung windows.

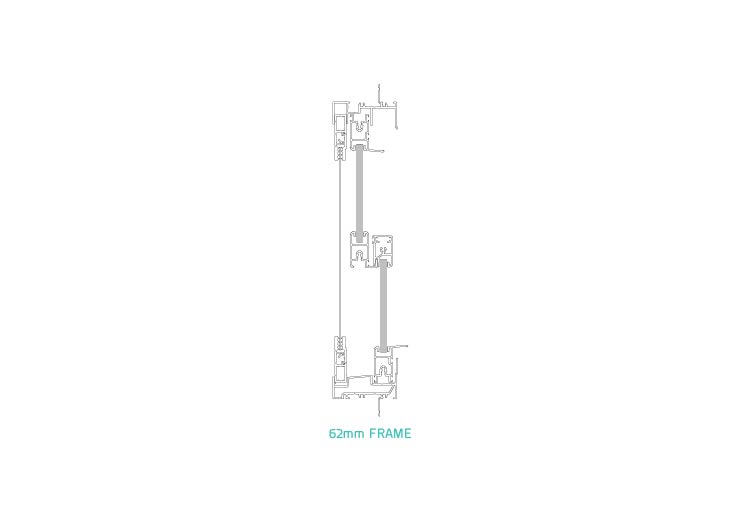

Frame widths available: 62mm.
Structural performance (up to):
Serviceability Limit State Wind Pressure: 3000Pa max
Ultimate Limit State Wind Pressure: 4600Pa max
Water Penetration Resistance Pressure: 450Pa max
Maximum recommended size (up to):
Height: 2400mm
Height with low light: 3000mm
Width: 1200mm
Glazing Maximum Thickness (up to):
Single Glazed: 6.76mm
Double Glazed: 16mm
Acoustics (up to):
Double Hung Window: RW (C:Ctr): 31 (-1:-2)
