Architects and engineers working on projects in cyclonic regions of Australia require higher performing window and door products. The Macleay sliding door is a product born from this necessity.
The upmost strength and increased noise reduction efficiency is obtained through the use of large interlocking hollow sections and heavier gauge wall sections throughout.
Wind load testing above 300Km/hr has proven the Macleay as one of the strongest sliding doors on the market.
Size and strength matter, and with the Macleay sliding door, heights above 3 metres are now possible.

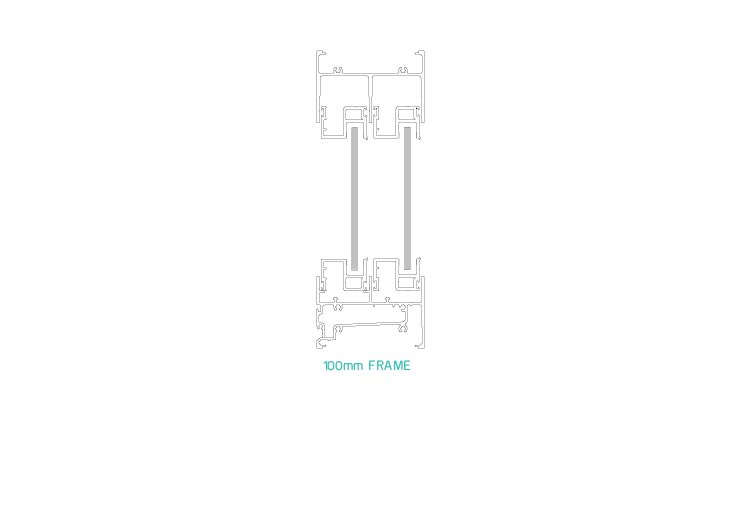

Frame widths available: 100mm
Structural performance (up to):
Serviceability Limit State Wind Pressure: 3500Pa max
Ultimate Limit State Wind Pressure: 8000Pa max
Water Penetration Resistance Pressure: 500Pa max
Maximum recommended size (up to):
Height: 3200mm
Width: 1800mm (sash width)
Glazing Maximum Thickness (up to):
Single Glazed: 10.76mm
Acoustics (up to):
101.6mm Sliding Door: RW (C:Ctr): up to 34 (-1:-3)
