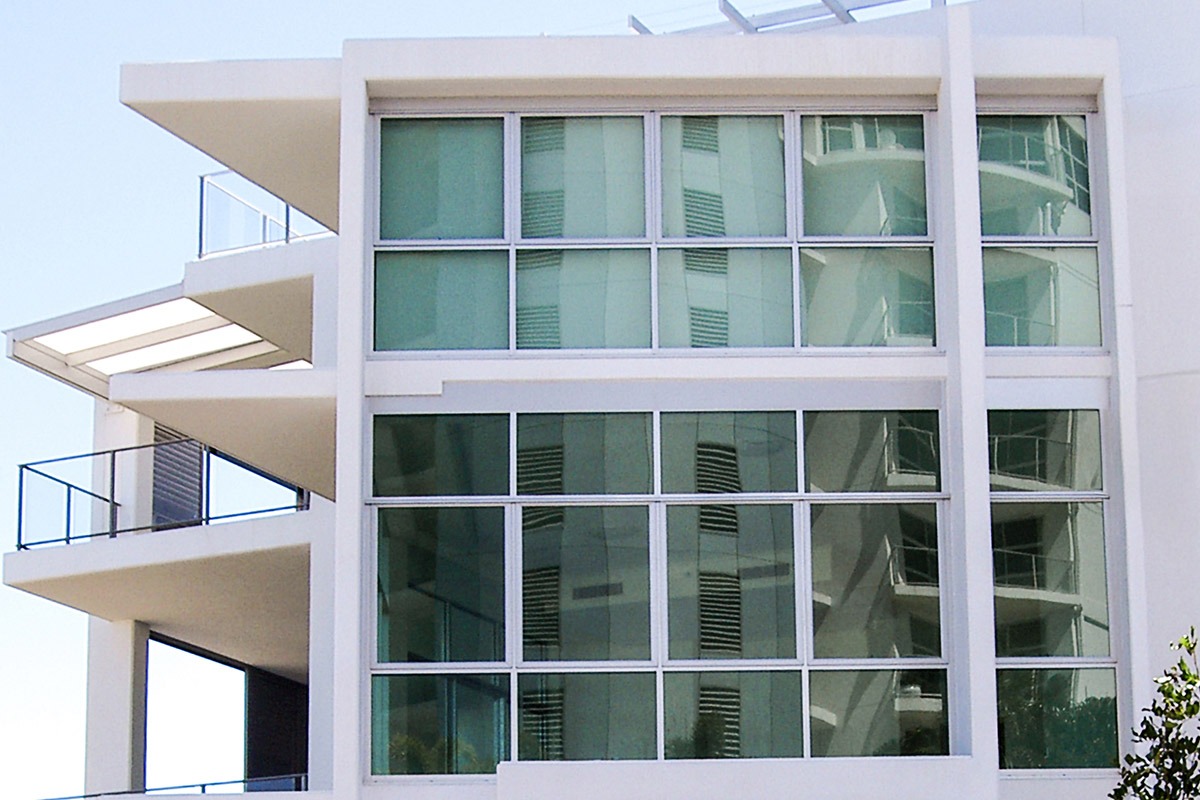

The Casuarina Awning Window is a top hung system with hollow mullion and stile sections to add strength and security.

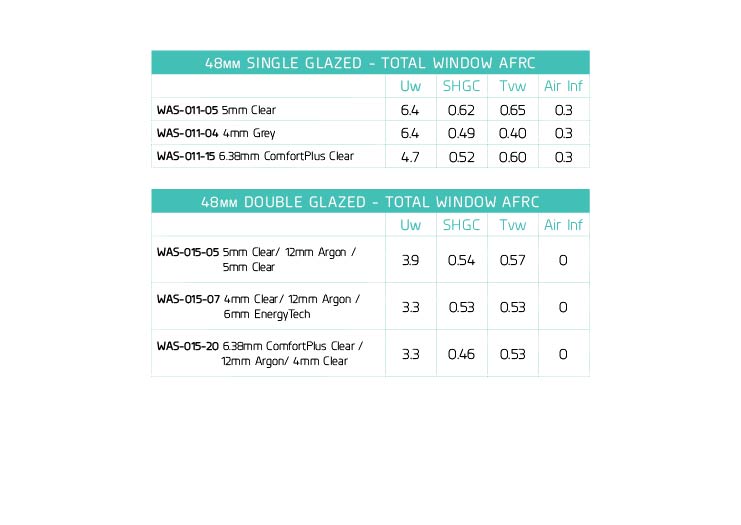

The additional use of Q’lon seals with this system also improves energy, weather and acoustic performance.

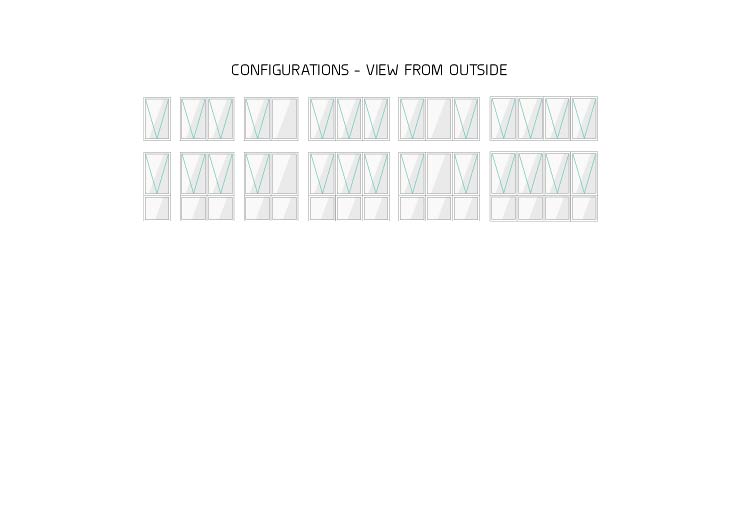

It can also accommodate friction stays and chain winder options. Multiple bays can be added using a standard mullion.
The design includes multiple stiles to accommodate several glass thicknesses.
Options available include: restricted opening, standard or barrel key locking, insect or security screens.
Frame widths available: 48mm, 75mm, and 100mm
Structural performance (up to):
Serviceability Limit State Wind Pressure: 1000Pa max
Ultimate Limit State Wind Pressure: 3500Pa max
Water Penetration Resistance Pressure: 1000Pa max
Maximum recommended size (up to):
Height: 1550mm
Height with low light: 2750mm
Width: 1200mm (sash width)
Glazing Maximum Thickness (up to):
Single Glazed: 6.76mm
Double Glazed: 22mm
Acoustics (up to):
48mm Awning Window: RW (C:Ctr): 32 (0:-1)
101.6mm Awning Window: RW (C:Ctr): 35 (-1:-3)
