Centre Glazed Framing Profiles are easy to manufacture and have a flexible range of uses. Our 101.6mm framing integrates with our other Wintec architectural systems and our Sub-frame options ensure suitability for various applications both commercial and residential.
Options for both single and double glazing pockets allow for a wide range of glazing from 5mm to 28mm thickness and our 6063 T6 alloy improves the fabrication processes and overall product strength.
With the addition of colour coded glazing wedges, our systems become even easier to identify and select, and to top it off, our secure fit captive wedge improves retention in the glazing pocket.

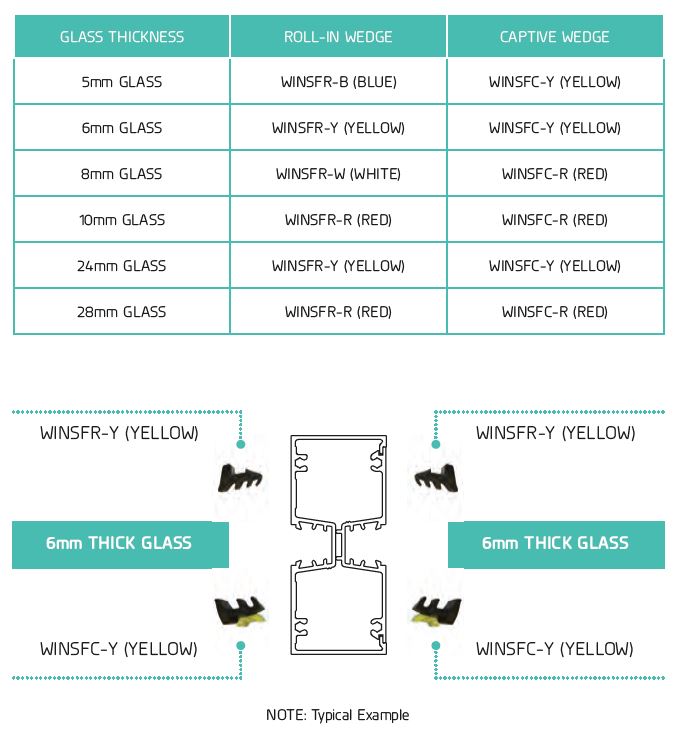

We have a wide range of roll-in and captive wedges in stock to suit single and double glazed systems from 5mm to 28mm glass (refer to the below table).
Santoprene is the best material available for long-term durability and anti-stretch features.
The co-extrusion backing gives an easy identifier of thickness, when engaging and further enhanced anti-stretch capabilities of the wedges.
