The Jarvis louvre window design allows for multiple banks of louvres within the same perimeter frame.
It accommodates glass, aluminium or timber blades and features a built-in insect or security screen track.
This is an excellent product for ventilation.
Available operating systems include: remote control, handle locking bars, and manual operation.
The Jarvis Louvre can be coupled with various other Wintec Systems products.
Frame widths available: 125mm.

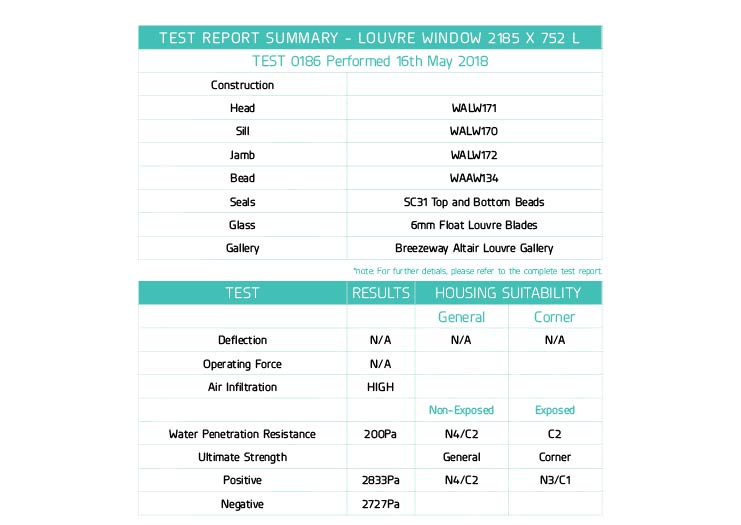

Structural performance (up to):
Serviceability Limit State Wind Pressure: 1800Pa max
Ultimate Limit State Wind Pressure: 3000Pa max
Water Penetration Resistance Pressure: 200Pa max
Maximum recommended size (up to):
Height: 2700mm
Width: 900mm (sash width)
Glazing Thickness:
Single Glazed: 6mm
