The Wintec Systems Whitsunday 100mm Awning Window is one for extremes!
It boasts an extreme size with very large opening sashes.
It’s also excellent in extreme weather as its multi-point locking feature adds extra security in high wind areas.
Additional options include: restricted opening, standard or barrel key locking, insect or security screens.

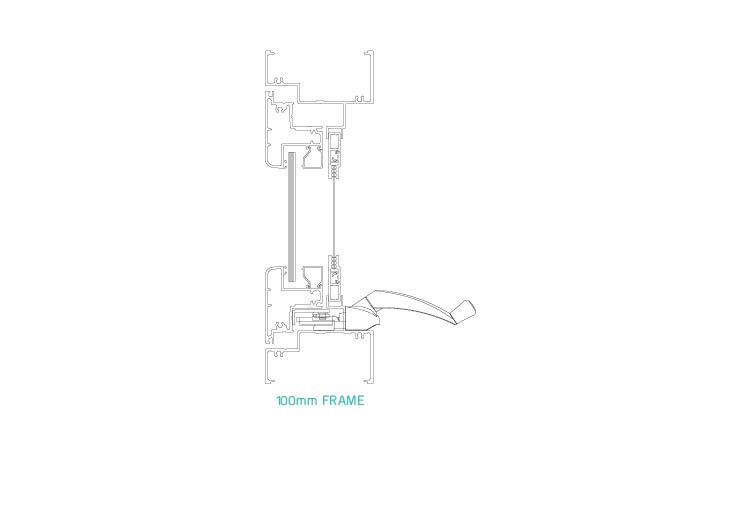

Frame widths available: 100mm
Structural performance (up to):
Serviceability Limit State Wind Pressure: 3000Pa max
Ultimate Limit State Wind Pressure: 6100Pa max
Water Penetration Resistance Pressure: 450Pa max
Maximum recommended size (up to):
Height: 2200mm
Height with low light: 2750mm
Width: 1500mm (sash width)
Glazing Maximum Thickness (up to):
Single Glazed: 12.76mm
Double Glazed: 24mm
Acoustics (up to):
101.6mm Awning Window: RW (C:Ctr): 34 (-1:-2)
